The BZX84J-C68,115 Zener diode from NXP features a maximum operating temperature range of -65°C to 150°C and a maximum power dissipation of 550mW. It has a Zener voltage of 68V with a tolerance of 5%. The diode has a maximum reverse leakage current of 50nA and an impedance of 160R. The device is lead free and RoHS compliant, and is available in a SC package with a surface mount configuration.
PackageSC
MountingSurface Mount
Power550mW
Quick Jump:
Technical Specifications
NXP BZX84J-C68,115 technical specifications.
General
| Package/Case | SC |
| Contact Plating | Tin |
| ESD Protection | No |
| Impedance | 160R |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 550mW |
| Max Reverse Leakage Current | 50nA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 550mW |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Zener Voltage | 68V |
Compliance
| RoHS | Compliant |
Datasheet
NXP BZX84J-C68,115 Datasheet
Download the complete datasheet for NXP BZX84J-C68,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

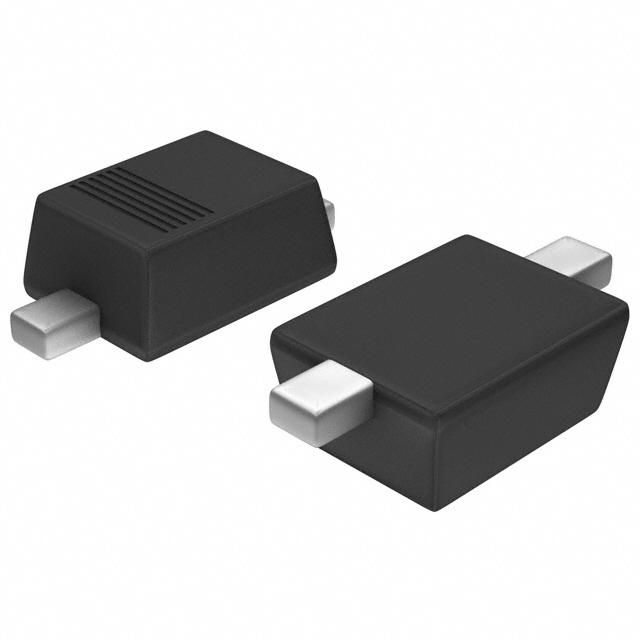

Product Images
