PackageSOT-886
Capacitance28pF
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PESD3V3L5UF115 technical specifications.
General
Capacitance
28pF
Package/Case
SOT-886
Clamping Voltage-Max
10V
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Height
0.5mm
Lead Free
Lead Free
Length
1.5mm
Max Breakdown Voltage
5.9V
Min Breakdown Voltage
5.3V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
300uA
Mount
Surface Mount
Number of Channels
5
Number of Unidirectional Channels
5
Package Quantity
1
Packaging
Cut Tape
Peak Pulse Current
2.5A
Peak Pulse Power
25W
Power Line Protection
No
Reverse Standoff Voltage
3.3V
Width
1.05mm
Compliance
RoHS
Compliant
Datasheet
NXP PESD3V3L5UF115 Datasheet
Download the complete datasheet for NXP PESD3V3L5UF115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

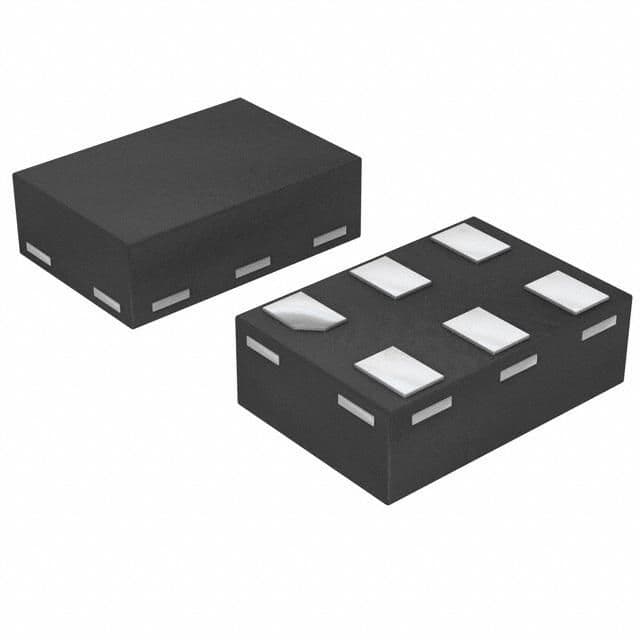

Product Images
