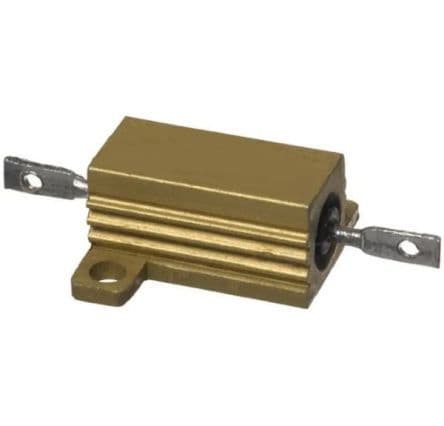

Wirewound fixed resistor featuring 75 Ohm resistance with 1% tolerance. This chassis mount component offers 10W maximum power dissipation and a 320V DC rated voltage. Operating temperature range spans from 0°C to 275°C, with a temperature coefficient of ±20ppm/°C. The aluminum housed package is designed for solder termination and includes flanges for mounting.
Sign in to ask questions about the Ohmite 810F75RE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ohmite 810F75RE technical specifications.
| Package/Case | Aluminum |
| Depth | 20.63mm |
| Diameter | 14.27mm |
| Height | 10.31mm |
| Lead Free | Lead Free |
| Lead/Base Style | Solder |
| Length | 0.75inch |
| Max Operating Temperature | 275°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 10W |
| Mount | Flanges |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 75R |
| Resistance Tolerance | 1% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | 89 |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 1% |
| Voltage Rating | 320V |
| Voltage Rating (AC) | 7V |
| DC Rated Voltage | 320V |
| Width | 20.63mm |
| RoHS | Compliant |
