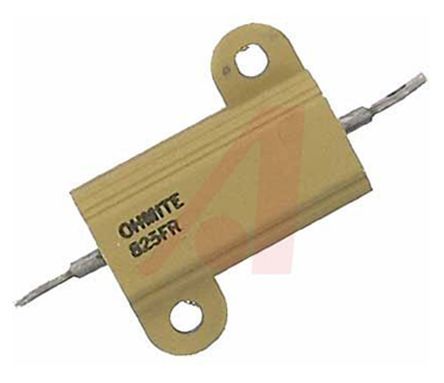

Wirewound chassis mount resistor with 1 Ohm resistance and 1% tolerance, rated for 25W maximum power dissipation and 520V DC. Features a durable aluminum package with solder terminations, suitable for operation between 0°C and 275°C. This RoHS compliant component is designed for chassis mounting via flanges.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ohmite 825F1R0E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Aluminum |
| Depth | 27.79mm |
| Diameter | 18.26mm |
| Height | 14.28mm |
| Lead Free | Lead Free |
| Lead/Base Style | Solder |
| Length | 26.98mm |
| Max Operating Temperature | 275°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 25W |
| Mount | Flanges |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| Resistance | 1R |
| Resistance Tolerance | 1% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | Metal-Mite®89 |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 1% |
| Voltage Rating | 520V |
| Voltage Rating (AC) | 5V |
| DC Rated Voltage | 520V |
| Width | 27.79mm |
| RoHS | Compliant |
