Wirewound chassis mount resistor featuring 100k Ohm resistance with a tight 1% tolerance. This aluminum-housed component offers 50W maximum power dissipation and a wide operating temperature range from 0°C to 275°C. It includes solderable axial leads and is RoHS compliant, designed for reliable performance in demanding applications.
PackageAluminum
Resistance100kR
Voltage Rating1.17kV
MountingFlanges
Quick Jump:
Technical Specifications
Ohmite 850F100KE technical specifications.
General
Package/Case
Aluminum
Diameter
39.67mm
Height
0.656inch
Lead Free
Lead Free
Lead/Base Style
Solder
Length
1.938inch
Max Operating Temperature
275°C
Min Operating Temperature
0°C
Max Power Dissipation
50W
Mount
Flanges
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
100kR
Resistance Tolerance
1%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
Metal-Mite®89
Technology
WIRE WOUND
Termination
Solder
Tolerance
1%
Voltage Rating
1.17kV
DC Rated Voltage
1.17kV
Width
29.36mm
Compliance
RoHS
Compliant
Datasheet
Ohmite 850F100KE Datasheet
Download the complete datasheet for Ohmite 850F100KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

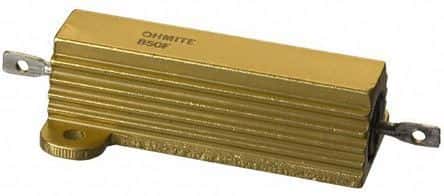

Product Images
