PackageAluminum
Resistance200R
Voltage Rating1.17kV
MountingFlanges
Quick Jump:
Technical Specifications
Ohmite 850F200E technical specifications.
General
Package/Case
Aluminum
Depth
29.36mm
Diameter
39.67mm
Height
15.88mm
Lead/Base Style
Solder
Length
49.23mm
Max Operating Temperature
275°C
Min Operating Temperature
0°C
Max Power Dissipation
50W
Mount
Flanges
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
200R
Resistance Tolerance
1%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
Metal-Mite®89
Termination
Solder
Tolerance
1%
Voltage Rating
1.17kV
DC Rated Voltage
1.17kV
Width
29.36mm
Compliance
RoHS
Compliant
Datasheet
Ohmite 850F200E Datasheet
Download the complete datasheet for Ohmite 850F200E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

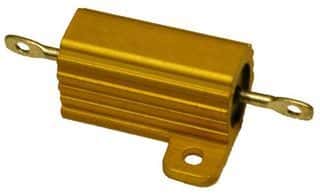

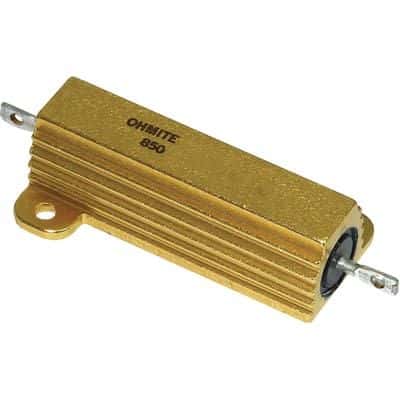

Product Images
