50W wirewound chassis mount resistor with 25 Ohm resistance and 1% tolerance. Features a 1.17kV DC rated voltage and 35V AC rated voltage. Constructed with a durable aluminum package, this component operates between 0°C and 275°C. Solder termination and RoHS compliant design ensure reliable integration.
PackageAluminum
Resistance25R
Voltage Rating1.17kV
MountingFlanges
Quick Jump:
Technical Specifications
Ohmite 850F25RE technical specifications.
General
| Package/Case | Aluminum |
| Depth | 29.36mm |
| Diameter | 39.67mm |
| Height | 15.88mm |
| Lead Free | Lead Free |
| Lead/Base Style | Solder |
| Length | 49.23mm |
| Max Operating Temperature | 275°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 50W |
| Mount | Flanges |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 25R |
| Resistance Tolerance | 1% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | Metal-Mite®89 |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 1% |
| Voltage Rating | 1.17kV |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 1.17kV |
| Width | 29.36mm |
Compliance
| RoHS | Compliant |
Datasheet
Ohmite 850F25RE Datasheet
Download the complete datasheet for Ohmite 850F25RE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

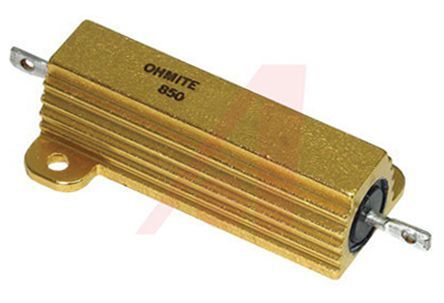

Product Images
