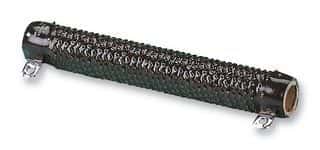

Wirewound fixed resistor, 300W power dissipation, 10 Ohm resistance with 10% tolerance. Features a 1kV voltage rating and operates from -25°C to 400°C. Chassis mountable with radial package, measuring 28.58mm x 28.6mm x 47.63mm. Termination is lug style with solder leads.
PackageRadial
Resistance10R
Voltage Rating1kV
MountingBrackets, Bolt
Quick Jump:
Technical Specifications
Ohmite C300K10R technical specifications.
General
| Package/Case | Radial |
| Depth | 28.58mm |
| Diameter | 28.6mm |
| Height | 47.63mm |
| Inside Diameter | 19mm |
| Lead Length | 19mm |
| Lead/Base Style | Solder |
| Length | 215.9mm |
| Max Operating Temperature | 400°C |
| Min Operating Temperature | 25°C |
| Max Power Dissipation | 300W |
| Mount | Brackets, Bolt |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 10R |
| Resistance Tolerance | 10% |
| Resistor Type | Wirewound |
| RoHS Compliant | No |
| Series | Corrib®280 |
| Termination | Lug |
| Tolerance | 10% |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
| Width | 28.58mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Ohmite C300K10R Datasheet
Download the complete datasheet for Ohmite C300K10R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
