PackageRadial
Resistance2.5kR
Voltage Rating3.595kV
MountingChassis Mount, Bolt
Quick Jump:
Technical Specifications
Ohmite D175K2K5 technical specifications.
General
Package/Case
Radial
Diameter
19.1mm
Length
215.9mm
Material
Ceramic
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
175W
Mount
Chassis Mount, Bolt
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
2.5kR
Resistance Tolerance
10%
Resistor Type
Wirewound
RoHS Compliant
No
Series
Dividohm®210
Termination
Lug
Tolerance
10%
Voltage Rating
3.595kV
DC Rated Voltage
3.6kV
Compliance
RoHS
Not Compliant
Datasheet
Ohmite D175K2K5 Datasheet
Download the complete datasheet for Ohmite D175K2K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

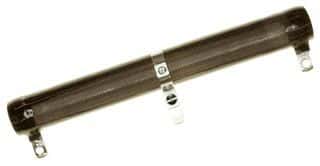

Product Images
