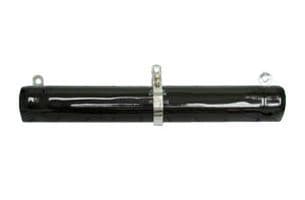

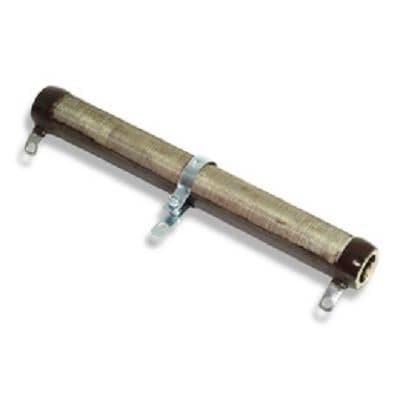

This Ohmite Dividohm 210 series wirewound resistor has a radial package with a diameter and depth of 14.3mm, and a length of 50.8mm. It is designed for chassis mount with a lug termination and is lead free. The resistor has a maximum power dissipation of 25W and a maximum operating temperature of 350°C, with a minimum operating temperature of 25°C. It is RoHS compliant and has a resistance of 250 ohms with a tolerance of 10%.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ohmite D25K250E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Depth | 14.3mm |
| Diameter | 14.3mm |
| Lead Free | Lead Free |
| Length | 50.8mm |
| Max Operating Temperature | 350°C |
| Min Operating Temperature | 25°C |
| Max Power Dissipation | 25W |
| Mount | Chassis Mount, Bolt |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 250R |
| Resistance Tolerance | 10% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | Dividohm®210 |
| Termination | Lug |
| Tolerance | 10% |
| Voltage Rating | 625V |
| DC Rated Voltage | 625V |
| RoHS | Compliant |
