The F20J400 is a wirewound resistor from Ohmite with a voltage rating of 815V and a resistance of 400R. It has a tolerance of 5% and a maximum power dissipation of 20W. The resistor is packaged in a radial configuration with a height and width of 0.375inch and a length of 0.75inch. It can operate within a temperature range of 25°C to 350°C.
PackageRadial
Resistance400R
Voltage Rating815V
Quick Jump:
Technical Specifications
Ohmite F20J400 technical specifications.
General
| Package/Case | Radial |
| Height | 0.375inch |
| Lead/Base Style | Solder |
| Length | 0.75inch |
| Max Operating Temperature | 350°C |
| Min Operating Temperature | 25°C |
| Max Power Dissipation | 20W |
| Package Quantity | 10 |
| Packaging | Bulk |
| Resistance | 400R |
| Series | Stackohm® 250 |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 815V |
| Width | 0.375inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Ohmite F20J400 Datasheet
Download the complete datasheet for Ohmite F20J400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

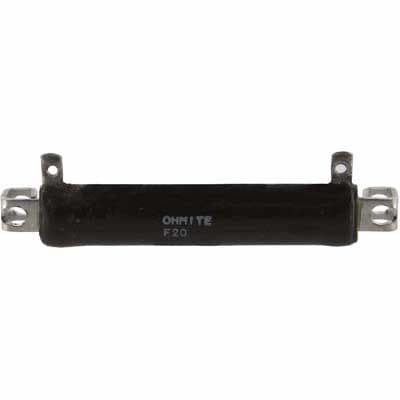

Product Images
