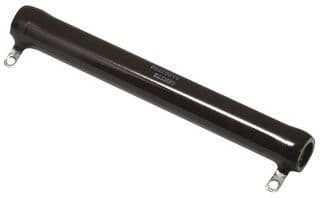

100W wirewound fixed resistor with 10kR resistance and 5% tolerance. Features vitreous enamel coating, RDL lug termination, and bolt-on chassis mount capability. Operates from -25°C to 350°C with a maximum power dissipation of 100W and a DC rated voltage of 2.84kV. RoHS compliant and includes a flame retardant coating.
PackageRadial
Resistance10kR
Voltage Rating2.845kV
MountingBrackets, Bolt
Quick Jump:
Technical Specifications
Ohmite L100J10KE technical specifications.
General
Package/Case
Radial
Depth
19.1mm
Diameter
19.1mm
Features
Flame Retardant Coating
Lead/Base Style
Solder
Length
165.1mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
100W
Mount
Brackets, Bolt
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
10kR
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
270
Technology
WIRE WOUND
Termination
Lug
Tolerance
5%
Voltage Rating
2.845kV
Voltage Rating (AC)
32V
DC Rated Voltage
2.84kV
Compliance
RoHS
Compliant
Datasheet
Ohmite L100J10KE Datasheet
Download the complete datasheet for Ohmite L100J10KE to view detailed technical specifications.
