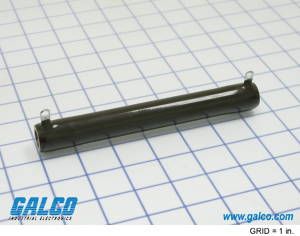

100W wirewound chassis mount resistor with 1 Ohm resistance and 5% tolerance. Features a flame retardant coating and operates from -25°C to 350°C. Designed for bracket or bolt mounting with solder lug terminations. Rated for 2.84kV DC and 10V AC, with a maximum power dissipation of 100W.
PackageRadial
Resistance1R
Voltage Rating2.845kV
MountingBrackets, Bolt
Quick Jump:
Technical Specifications
Ohmite L100J1R0E technical specifications.
General
Package/Case
Radial
Depth
19.1mm
Diameter
19.1mm
Features
Flame Retardant Coating
Lead Free
Lead Free
Lead/Base Style
Solder
Length
165.1mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
100W
Mount
Brackets, Bolt
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
1R
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
270
Technology
WIRE WOUND
Termination
Lug
Tolerance
5%
Voltage Rating
2.845kV
Voltage Rating (AC)
10V
DC Rated Voltage
2.84kV
Compliance
RoHS
Compliant
Datasheet
Ohmite L100J1R0E Datasheet
Download the complete datasheet for Ohmite L100J1R0E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
