100W wirewound resistor with 5kR resistance and 5% tolerance. Features vitreous enamel coating, RDL lug termination, and bolt-on chassis mount for high power dissipation up to 100W. Operates from -25°C to 350°C with a voltage rating of 2.845kV. This flame retardant component is RoHS compliant.
PackageRadial
Resistance5kR
Voltage Rating2.845kV
MountingBrackets, Bolt
Quick Jump:
Technical Specifications
Ohmite L100J5K0E technical specifications.
General
Package/Case
Radial
Depth
19.1mm
Diameter
19.1mm
Features
Flame Retardant Coating
Lead/Base Style
Solder
Length
165.1mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
100W
Mount
Brackets, Bolt
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
5kR
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
270
Technology
WIRE WOUND
Termination
Lug
Tolerance
5%
Voltage Rating
2.845kV
Voltage Rating (AC)
22V
DC Rated Voltage
2.84kV
Compliance
RoHS
Compliant
Datasheet
Ohmite L100J5K0E Datasheet
Download the complete datasheet for Ohmite L100J5K0E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

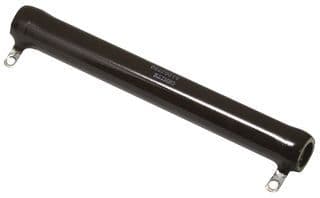

Product Images
