100W wirewound chassis mount resistor with 75 Ohm resistance and 5% tolerance. Features a flame retardant coating, radial package, and lug termination. Operates from -25°C to 350°C with a maximum power dissipation of 100W and a voltage rating of 2.84kV DC. Mounts via brackets or bolt.
PackageRadial
Resistance75R
Voltage Rating2.845kV
MountingBrackets, Bolt
Quick Jump:
Technical Specifications
Ohmite L100J75RE technical specifications.
General
Package/Case
Radial
Depth
19.1mm
Diameter
19.1mm
Features
Flame Retardant Coating
Lead/Base Style
Solder
Length
165.1mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
100W
Mount
Brackets, Bolt
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
75R
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
270
Technology
WIRE WOUND
Termination
Lug
Tolerance
5%
Voltage Rating
2.845kV
Voltage Rating (AC)
87V
DC Rated Voltage
2.84kV
Compliance
RoHS
Compliant
Datasheet
Ohmite L100J75RE Datasheet
Download the complete datasheet for Ohmite L100J75RE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

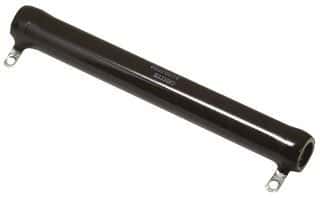

Product Images
