PackageRadial
Resistance100R
Voltage Rating3.595kV
MountingBrackets, Bolt
Quick Jump:
Technical Specifications
Ohmite L175J100E technical specifications.
General
Package/Case
Radial
Depth
28.6mm
Diameter
28.6mm
Features
Flame Retardant Coating
Lead/Base Style
Solder
Length
215.9mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
175W
Mount
Brackets, Bolt
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
100R
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
270
Technology
WIRE WOUND
Termination
Lug
Tolerance
5%
Voltage Rating
3.595kV
DC Rated Voltage
3.6kV
Compliance
RoHS
Compliant
Datasheet
Ohmite L175J100E Datasheet
Download the complete datasheet for Ohmite L175J100E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

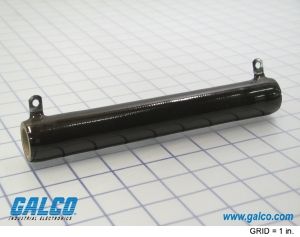

Product Images
