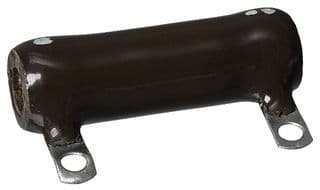

225W wirewound chassis mount resistor with 500 Ohm resistance and 5% tolerance. Features a flame retardant coating and operates from -25°C to 350°C. Rated for 4.6kV DC and 335V AC, this RoHS compliant component utilizes lug terminations for secure mounting via brackets or bolts.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ohmite L225J500E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Depth | 28.6mm |
| Diameter | 28.6mm |
| Features | Flame Retardant Coating |
| Lead Free | Lead Free |
| Lead/Base Style | Solder |
| Length | 266.7mm |
| Max Operating Temperature | 350°C |
| Min Operating Temperature | 25°C |
| Max Power Dissipation | 225W |
| Mount | Brackets, Bolt |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 500R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | 270 |
| Technology | WIRE WOUND |
| Termination | Lug |
| Tolerance | 5% |
| Voltage Rating | 4.595kV |
| Voltage Rating (AC) | 335V |
| DC Rated Voltage | 4.6kV |
| RoHS | Compliant |
