50 Watt, 50 Ohm wirewound fixed resistor with 5% tolerance. Tubular, radial package with solder lug terminations. Features a flame retardant coating and operates from -25°C to 350°C. Rated for 1.625kV, this RoHS compliant component is suitable for bracket or bolt mounting.
PackageRadial
Resistance50R
Voltage Rating1.625kV
MountingBrackets, Bolt
Quick Jump:
Technical Specifications
Ohmite L50J50RE technical specifications.
General
Package/Case
Radial
Depth
14.3mm
Diameter
14.3mm
Features
Flame Retardant Coating
Inside Diameter
7.95mm
Lead Free
Lead Free
Lead/Base Style
Solder
Length
101.6mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
50W
Mount
Brackets, Bolt
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
50R
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
270
Technology
WIRE WOUND
Termination
Lug
Tolerance
5%
Voltage Rating
1.625kV
DC Rated Voltage
1.62kV
Compliance
RoHS
Compliant
Datasheet
Ohmite L50J50RE Datasheet
Download the complete datasheet for Ohmite L50J50RE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

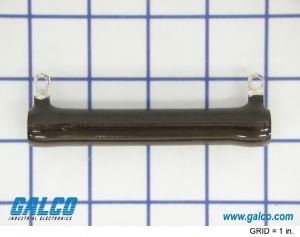

Product Images
