Axial leaded, through-hole mount carbon composition fixed resistor. Features 10kΩ resistance with a 5% tolerance and a 250V DC voltage rating. Power dissipation is 0.25W (250mW) with operating temperatures from -70°C to 130°C. The component has a 7mm body length and 2.5mm diameter, with 0.6mm axial leads. RoHS compliant.
PackageAxial
Resistance10kR
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Ohmite OD103JE technical specifications.
General
| Package/Case | Axial |
| Diameter | 2.5mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 0.6mm |
| Length | 7mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -70°C |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 5% |
| Resistor Type | Carbon Composition |
| RoHS Compliant | Yes |
| Series | OD |
| Technology | CARBON COMPOSITION |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Ohmite OD103JE Datasheet
Download the complete datasheet for Ohmite OD103JE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

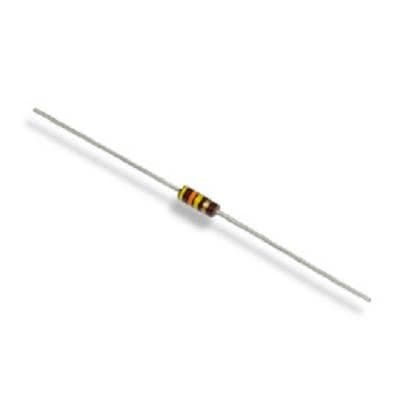

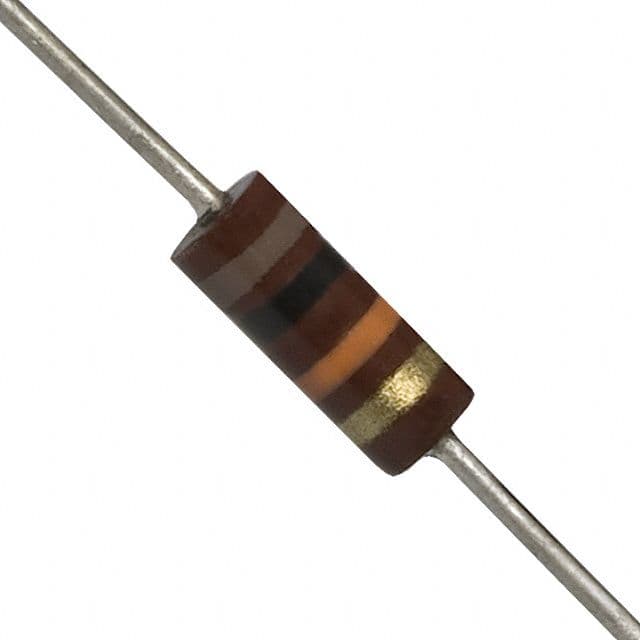

Product Images
