Through-hole fixed resistor with 4.7 Ohm resistance and 5% tolerance. Features axial termination, 250mW power dissipation, and a 250V voltage rating. Constructed with carbon composition technology, this component operates between -70°C and 130°C. It has a 7mm length and 2.5mm diameter with 0.6mm lead diameter and pitch. RoHS compliant and lead-free.
PackageAxial
Resistance4.7R
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Ohmite OD47GJE technical specifications.
General
| Package/Case | Axial |
| Diameter | 2.5mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 0.6mm |
| Length | 7mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -70°C |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 4.7R |
| Resistance Tolerance | 5% |
| Resistor Type | Carbon Composition |
| RoHS Compliant | Yes |
| Series | OD |
| Technology | CARBON COMPOSITION |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Ohmite OD47GJE Datasheet
Download the complete datasheet for Ohmite OD47GJE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

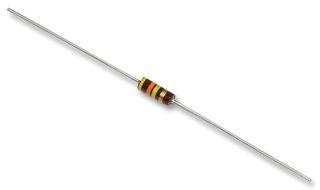

Product Images
