General purpose fixed resistor, carbon composition technology, 0.5W power rating, 33 ohm resistance with 5% tolerance. Features a 350V voltage rating and through-hole mounting with axial leads. Operates across a wide temperature range from -70°C to 130°C. RoHS compliant and lead-free construction.
PackageAxial
Resistance33R
Voltage Rating350V
MountingThrough Hole
Quick Jump:
Technical Specifications
Ohmite OF330JE technical specifications.
General
| Package/Case | Axial |
| Diameter | 3.8mm |
| Lead Diameter | 0.7mm |
| Lead Free | Lead Free |
| Lead Length | 34.3mm |
| Lead Pitch | 0.7mm |
| Length | 10.3mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -70°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 33R |
| Resistance Tolerance | 5% |
| Resistor Type | Carbon Composition |
| RoHS Compliant | Yes |
| Series | OF |
| Technology | CARBON COMPOSITION |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
| Wire/Cable Diameter | 0.029inch |
Compliance
| RoHS | Compliant |
Datasheet
Ohmite OF330JE Datasheet
Download the complete datasheet for Ohmite OF330JE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

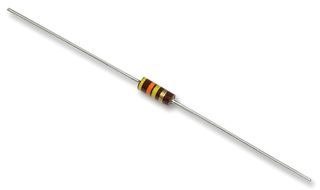

Product Images
