Through-hole fixed resistor with 4.7 Ohm resistance and 5% tolerance. Features axial termination, 500mW power dissipation, and a 350V voltage rating. Operates across a wide temperature range from -70°C to 130°C. Constructed with carbon composition technology and is RoHS compliant.
PackageAxial
Resistance4.7R
Voltage Rating350V
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Ohmite OF47GJE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Ohmite OF47GJE technical specifications.
General
| Package/Case | Axial |
| Diameter | 3.8mm |
| Lead Diameter | 0.7mm |
| Lead Free | Lead Free |
| Lead Pitch | 0.7mm |
| Length | 10.3mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -70°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 4.7R |
| Resistance Tolerance | 5% |
| Resistor Type | Carbon Composition |
| RoHS Compliant | Yes |
| Series | OF |
| Technology | CARBON COMPOSITION |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Ohmite OF47GJE Datasheet
Download the complete datasheet for Ohmite OF47GJE to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

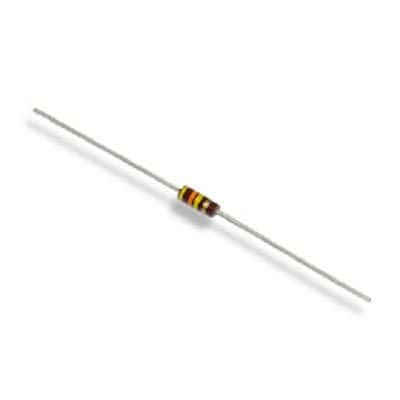

Product Images
