Technical Specifications
Omron B3J-5200 technical specifications.
General
Actuator Color
Orange
Actuator Length
6.8mm
Color
Red, Yellow
Contact Current Rating
50mA
Electrical Life
3000000Cycles
Illumination Type
Illuminated, LED
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mount
Through Hole
Operating Force
1.27N
Orientation
Straight
Ratings
IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Through Hole
Throw Configuration
SPST
Weight
1.7g
Compliance
RoHS
Compliant
Datasheet
Omron B3J-5200 Datasheet
Download the complete datasheet for Omron B3J-5200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

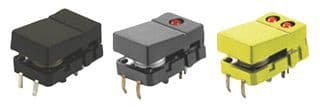

Product Images
