Omron
CP1L-M30DR-D
Programmable logic controller CP1, 18 DI, 1 AI (Potentiometer 8 Bit), 2 HS, 12 RO, CP1L-M30DR-D, Omron
Storage85mm
MountingDIN Rail, Chassis Mount, Panel
Quick Jump:
Technical Specifications
Omron CP1L-M30DR-D technical specifications.
General
Approvals
CE, cULus
Depth
85mm
Display Type
LCD
Input Type
DC
Length
130mm
Manufacturer Series
CP1L
Max Operating Temperature
55°C
Min Operating Temperature
0°C
Mount
DIN Rail, Chassis Mount, Panel
Number of I/Os
30
Number of Inputs
18
Number of Outputs
12
Output Current
2A
Output Type
RELAY
Package Quantity
1
Ratings
IP20
Series
CP1L
Size
85mm
Termination
Screw
Weight
1.3lb
Width
110mm
Compliance
RoHS
Compliant
Datasheet
Omron CP1L-M30DR-D Datasheet
Download the complete datasheet for Omron CP1L-M30DR-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

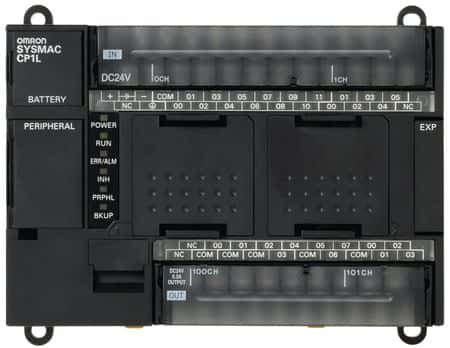

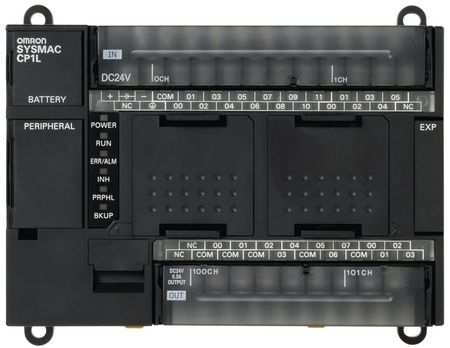

Product Images
