Digital expansion unit for programmable logic controllers, featuring 12 digital inputs and 8 relay outputs. This modular component offers screw termination and DIN rail mounting for industrial automation applications. Approvals include UL, CSA, and CE, with an IP20 rating for protection. The unit measures 90mm in length, 86mm in width, and 50mm in depth.
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Omron CP1W-20EDR1 technical specifications.
General
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Depth | 50mm |
| Length | 90mm |
| Mount | DIN Rail |
| Number of Inputs | 12 |
| Number of Outputs | 8 |
| Output Type | RELAY |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP20 |
| Series | CP1W |
| Termination | Screw |
| Width | 86mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron CP1W-20EDR1 Datasheet
Download the complete datasheet for Omron CP1W-20EDR1 to view detailed technical specifications.
No datasheet is available for this part.

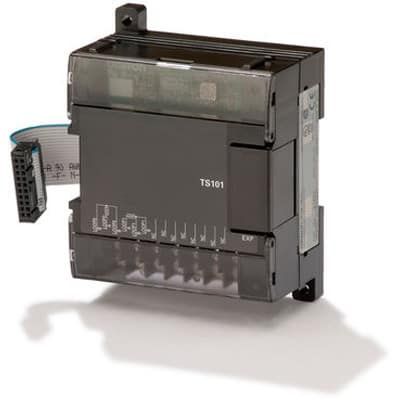

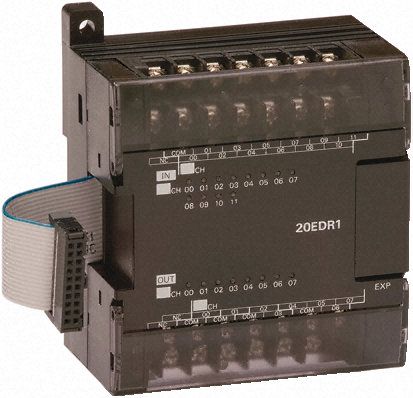

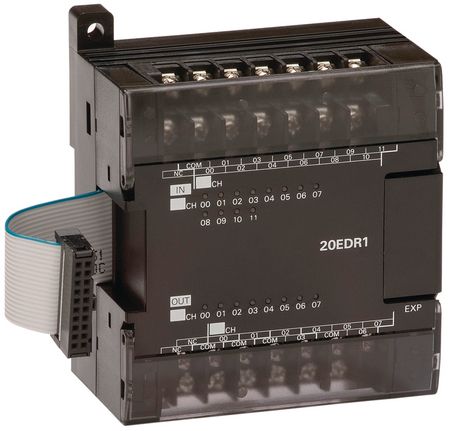

Product Images
