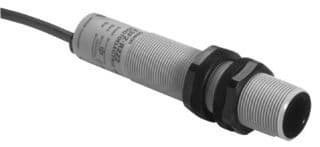

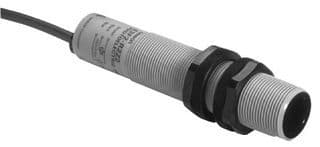

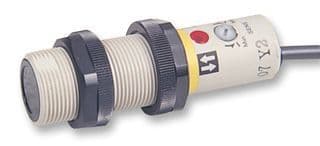

The Omron E3F2DS30C4 is a dark-on NPN output device with a maximum operating temperature of 55°C and a minimum operating temperature of -25°C. It has a maximum supply voltage of 30V and a minimum supply voltage of 10V. The device is panel mount and has an operating supply current of 30mA. It is packaged in bulk and has a package quantity of 1.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3F2DS30C4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Length | 64.9mm |
| Package/Case | Axial |
| Lead Length | 2m |
| Length | 64.9mm |
| Material | ABS |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (AC) | 240V |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 30mA |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Sensing Distance | 11.811inch |
| Series | E3F2 |
| Supply Current | 30mA |
| RoHS | Compliant |
