Miniature photoelectric sensor with NPN open collector output, offering a 30mm sensing distance. Features a 1ms response time and a maximum output current of 50mA. Operates within a DC supply voltage range of 12V to 24V (10.8V to 26.4V max). Constructed with a PBT body and rated IP67 for environmental protection. Mounting options include brackets, flush, and screw.
MountingBrackets, Flush, Screw
Quick Jump:
Technical Specifications
Omron E3T-FD11 technical specifications.
General
Approvals
CE
Body Material
PBT
Lead Free
Contains Lead
Length
2mm
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Output Current
50mA
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
12V
Max Supply Voltage
26.4V
Min Supply Voltage
10.8V
Mount
Brackets, Flush, Screw
Output Configuration
NPN - Open Collector
Output Current
50mA
Output Type
NPN
Package Quantity
1
Packaging
Bulk
Ratings
IP67
Reach SVHC Compliant
No
Response Time
1ms
RoHS Compliant
Yes
Sensing Distance
30mm
Series
E3T
Weight
20g
Width
12mm
Compliance
RoHS
Not Compliant
Datasheet
Omron E3T-FD11 Datasheet
Download the complete datasheet for Omron E3T-FD11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

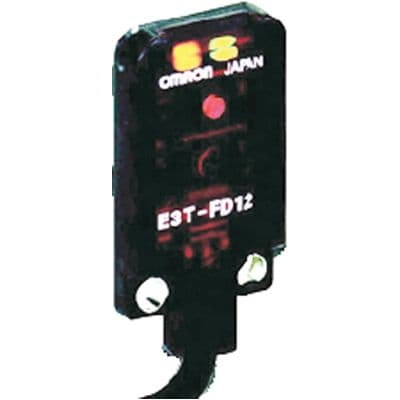

Product Images
