The Omron E3T-ST13 is a general purpose electromechanical component with a PNP open collector output configuration. It operates within a temperature range of -25°C to 55°C and is rated for use with a supply voltage of 24V. The component is packaged in bulk and is RoHS compliant. It features a response time of 1ms and is rated for use in IP67 environments.
MountingBrackets, Screw
Quick Jump:
Technical Specifications
Omron E3T-ST13 technical specifications.
General
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 26.4V |
| Min Supply Voltage | 10.8V |
| Mount | Brackets, Screw |
| Operating Supply Voltage | 24V |
| Output Configuration | PNP - Open Collector |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 1m |
| Series | E3T |
| Termination | Cable |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron E3T-ST13 Datasheet
Download the complete datasheet for Omron E3T-ST13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

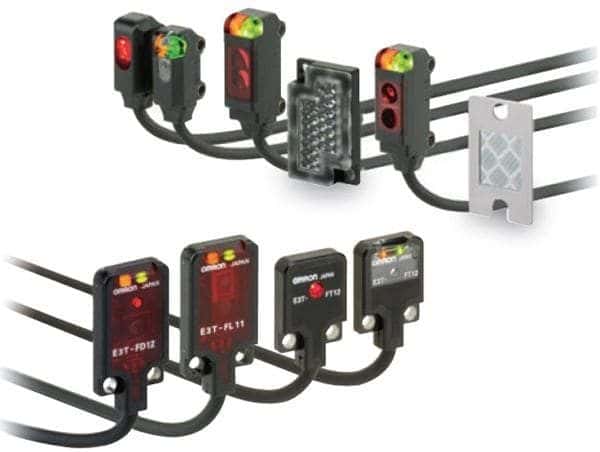

Product Images
