Technical Specifications
Omron E3Z-T86 technical specifications.
General
| Height | 20mm |
| Length | 43.5mm |
| Material | Polybutylene |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Max Voltage Rating (DC) | 24V |
| Mount | Screw |
| Output Configuration | PNP |
| Output Current | 100mA |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 157.48inch |
| Series | E3Z |
| Termination | Connector |
| Width | 10.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron E3Z-T86 Datasheet
Download the complete datasheet for Omron E3Z-T86 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

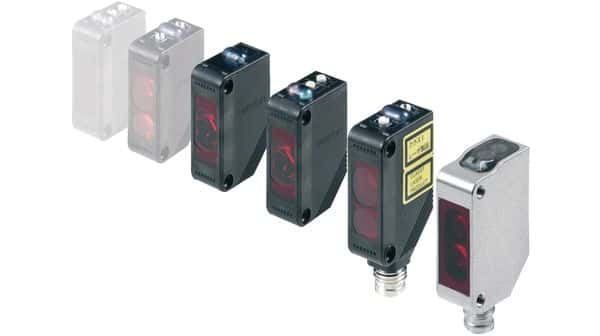

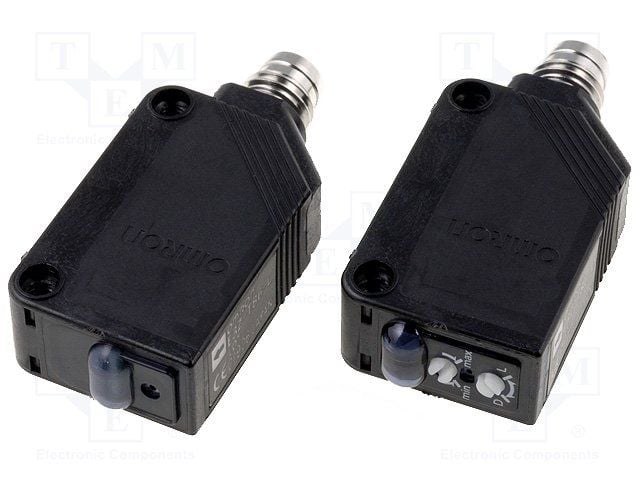

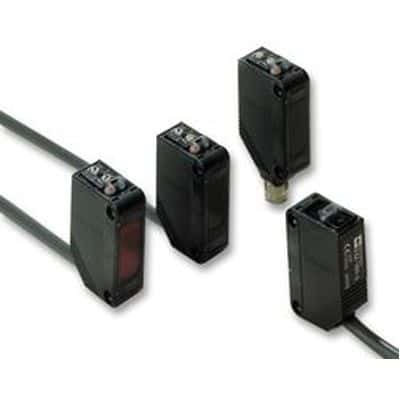

Product Images
