Digital temperature controller featuring universal input and three analog outputs. Offers On/Off and Proportional (PID) control methods with an LCD display. Operates on AC supply voltages from 100V to 240V, with a maximum operating temperature of 55°C and a minimum of -10°C. This 48mm DIN-sized unit is panel mountable, IP66 rated for water and dust resistance, and RoHS compliant.
Package100
Storage48mm
MountingBrackets, Panel
Quick Jump:
Technical Specifications
Omron E5CC-CX3A5M-000 technical specifications.
General
Package/Case
100
Control Method
On/Off, Proportional (PID)
Display Type
LCD
Height
48mm
Input Type
UNIVERSAL
Max Operating Temperature
55°C
Min Operating Temperature
-10°C
Max Supply Voltage (AC)
240V
Min Supply Voltage (AC)
100V
Mount
Brackets, Panel
Number of Inputs
1
Number of Outputs
3
Operating Supply Voltage
240V
Output Type
Analog
Package Quantity
1
Packaging
Bulk
Ratings
IP66, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
E5CC
Size
48mm
Termination
Screw
Weight
0.265lb
Width
48mm
Compliance
RoHS
Not Compliant
Datasheet
Omron E5CC-CX3A5M-000 Datasheet
Download the complete datasheet for Omron E5CC-CX3A5M-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

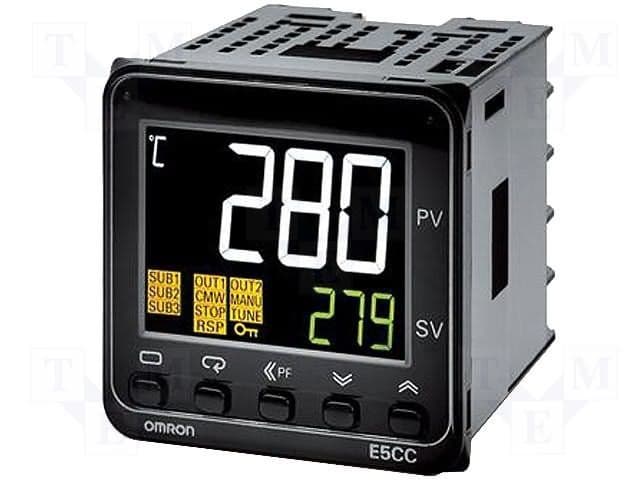

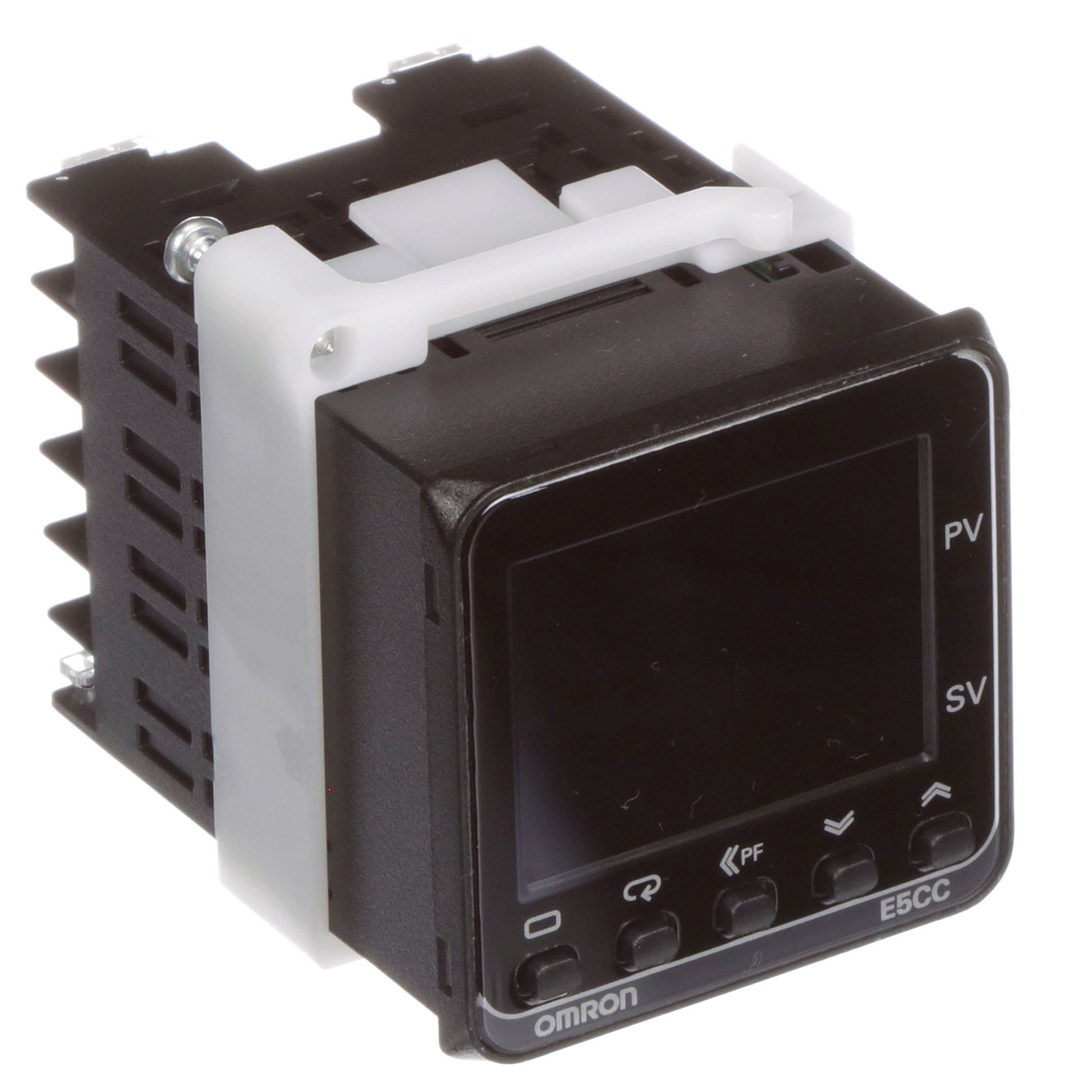

Product Images
