Process and temperature controller featuring On/Off and Proportional (PID) control methods. This 1/16 DIN unit offers a universal input and three voltage outputs, with two capable of delivering 14.4V. The controller boasts an LCD display and operates within a -10°C to 55°C temperature range, powered by 100-240V AC. Designed for panel mounting with screw termination, it is IP66 rated for water and dust resistance.
Package100
Storage48mm
MountingBrackets, Panel
Quick Jump:
Technical Specifications
Omron E5CC-QQ3A5M-001 technical specifications.
General
| Package/Case | 100 |
| Control Method | On/Off, Proportional (PID) |
| Display Type | LCD |
| Height | 48mm |
| Input Type | UNIVERSAL |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 100V |
| Mount | Brackets, Panel |
| Number of Inputs | 1 |
| Number of Outputs | 3 |
| Operating Supply Voltage | 240V |
| Output Type | Voltage |
| Output Voltage | 14.4V |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | E5CC |
| Size | 48mm |
| Termination | Screw |
| Weight | 0.265lb |
| Width | 48mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron E5CC-QQ3A5M-001 Datasheet
Download the complete datasheet for Omron E5CC-QQ3A5M-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

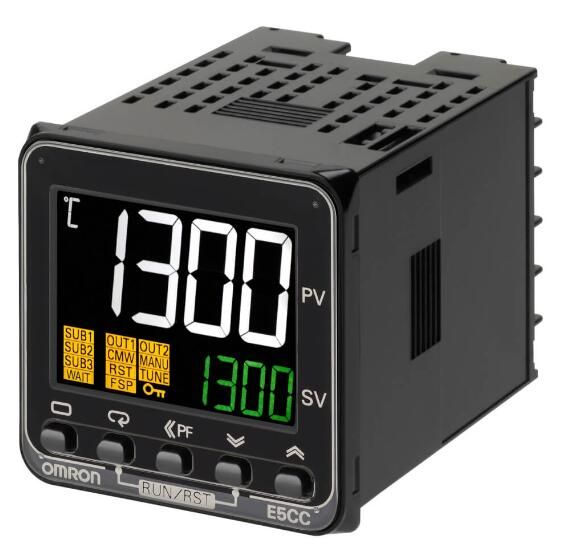

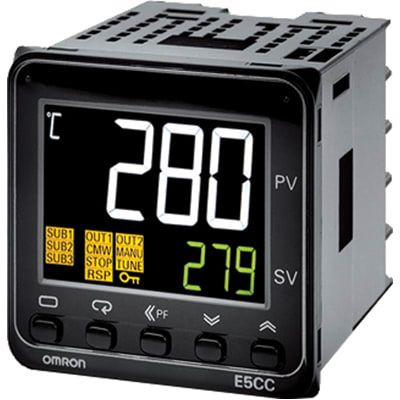

Product Images
