Digital temperature controller featuring On/Off and Proportional (PID) control methods. Equipped with a single universal input and three voltage output terminals, delivering 14.4V. Operates on a 24V AC/DC supply voltage and boasts an LCD display. Designed for panel or bracket mounting, this 48mm unit offers IP66, water-resistant, and dust-tight ratings, with a wide operating temperature range of -10°C to 55°C.
Storage48mm
MountingBrackets, Panel
Quick Jump:
Technical Specifications
Omron E5CC-QX3D5M-000 technical specifications.
General
Control Method
On/Off, Proportional (PID)
Display Type
LCD
Height
48mm
Input Type
UNIVERSAL
Max Operating Temperature
55°C
Min Operating Temperature
-10°C
Min Supply Voltage (AC)
24V
Max Supply Voltage (DC)
24V
Mount
Brackets, Panel
Number of Inputs
1
Number of Outputs
3
Operating Supply Voltage
24V
Output Type
Voltage
Output Voltage
14.4V
Package Quantity
1
Packaging
Bulk
Ratings
IP66, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
E5CC
Size
48mm
Termination
Screw
Weight
0.265lb
Width
48mm
Compliance
RoHS
Not Compliant
Datasheet
Omron E5CC-QX3D5M-000 Datasheet
Download the complete datasheet for Omron E5CC-QX3D5M-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

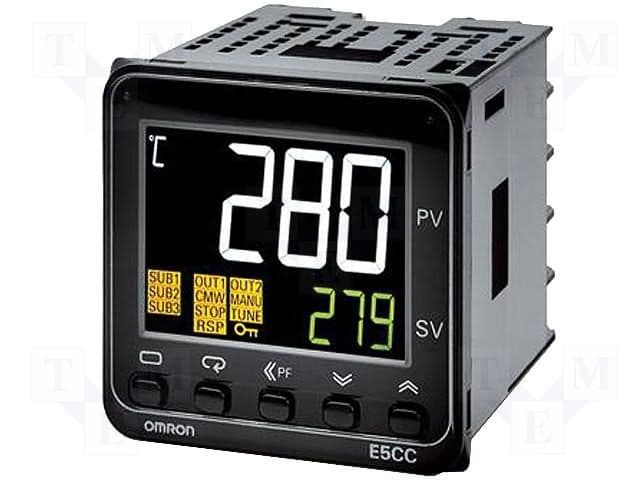

Product Images
