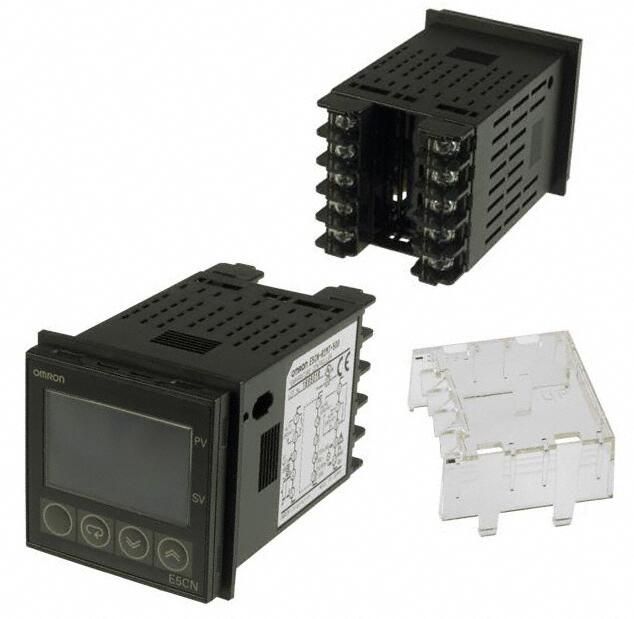

The Omron E5CN-R2MT-500AC100-240 is a dual relay module with on/off and proportional control. It has a maximum operating temperature of 55°C and a minimum operating temperature of -10°C. The module is rated for a maximum supply voltage of 240V AC and a minimum supply voltage of 100V AC. It has a dual display and is approved for use in UL and CSA environments. The module is lead free and RoHS compliant, with a water-resistant and dust-tight rating of IP66.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E5CN-R2MT-500AC100-240 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Package/Case | 100 |
| Control Method | On/Off, Proportional (PID) |
| Display Type | Dual |
| Height | 48mm |
| Input Type | UNIVERSAL |
| Lead Free | Lead Free |
| Length | 104mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Min Output Voltage | 5V |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 100V |
| Mount | Panel |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Output Current | 21mA |
| Output Type | RELAY |
| Output Voltage | 5V |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | E5CN |
| Size | 48mm |
| Termination | Screw |
| Thickness | 48mm |
| Throw Configuration | SPST |
| DC Rated Voltage | 240V |
| Weight | 0.331lb |
| Width | 48mm |
| RoHS | Compliant |
