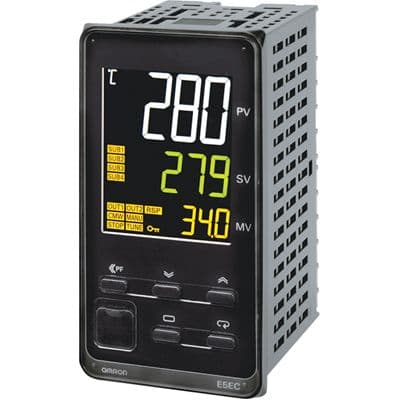

Process and Temperature Controller featuring On/Off and Proportional (PID) control methods. Universal input type supports multiple signal ranges, with four analog outputs for versatile control. Operates on 100-240V AC supply voltage, housed in a 48mm width x 96mm height panel-mount package with screw termination. IP66 rated for dust-tight and water-resistant operation, suitable for industrial environments from -10°C to 55°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E5EC-CX4A5M-000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 100 |
| Control Method | On/Off, Proportional (PID) |
| Display Type | LCD |
| Height | 96mm |
| Input Type | UNIVERSAL |
| Lead Free | Lead Free |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 100V |
| Mount | Brackets, Panel |
| Number of Inputs | 3 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 240V |
| Output Type | Analog |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | E5EC |
| Size | 96mm |
| Termination | Screw |
| Weight | 0.463lb |
| Width | 48mm |
| RoHS | Compliant |
