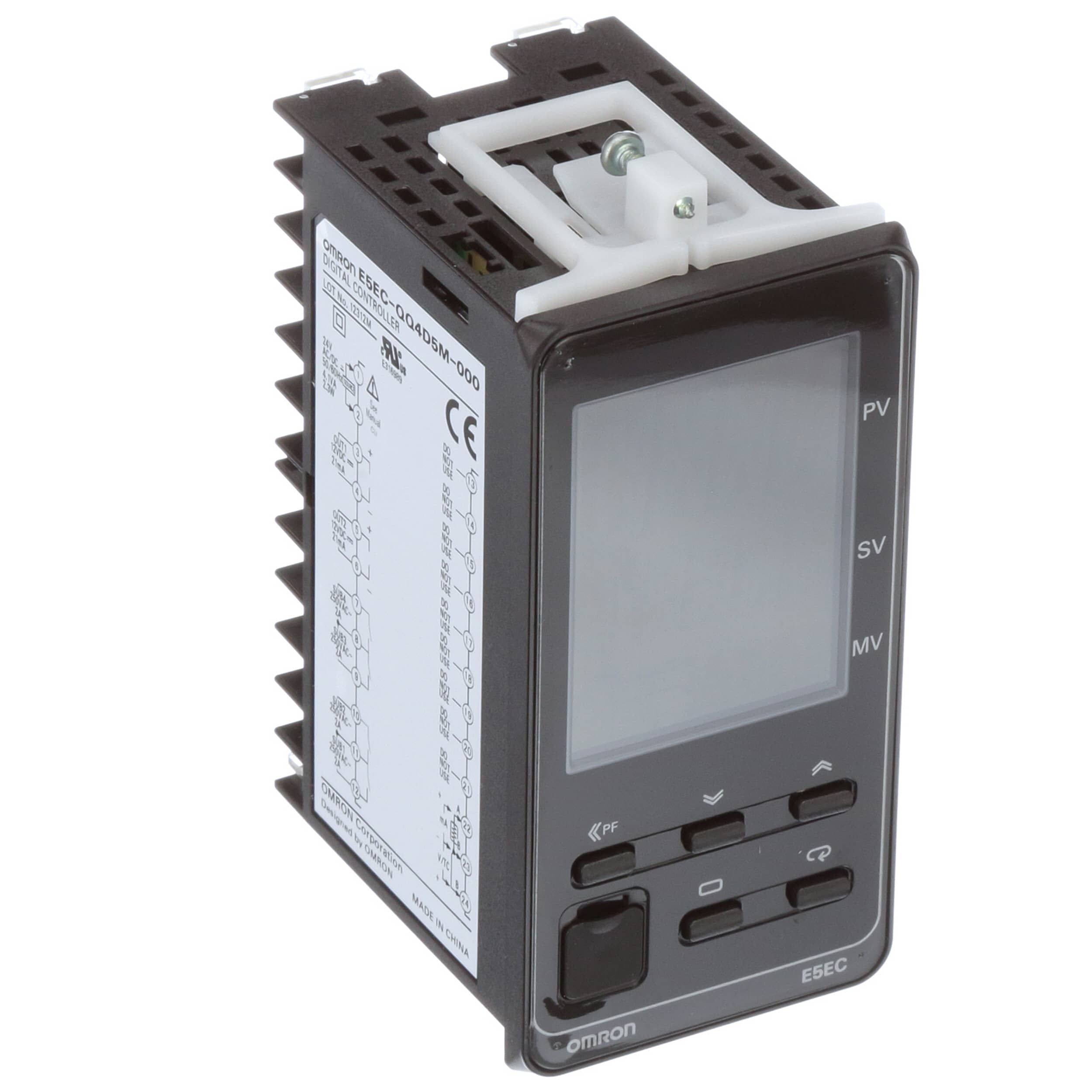

This Omron PID controller features a 24V universal input and provides a 14.4V output. It operates within a temperature range of -10°C to 55°C and is rated for use with a 24V DC supply voltage. The controller is designed for use in industrial automation and control applications and is compliant with RoHS regulations. It measures 96mm in height, 48mm in width, and 96mm in depth, and weighs 0.463lb. The controller is also water-resistant and dust-tight, with an IP66 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E5EC-QQ4D5M-000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Control Method | On/Off, Proportional (PID) |
| Display Type | LCD |
| Height | 96mm |
| Input Type | UNIVERSAL |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Min Supply Voltage (AC) | 24V |
| Max Supply Voltage (DC) | 24V |
| Mount | Brackets, Panel |
| Number of Inputs | 3 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 24V |
| Output Type | Voltage |
| Output Voltage | 14.4V |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | E5EC |
| Size | 96mm |
| Termination | Screw |
| Weight | 0.463lb |
| Width | 48mm |
| RoHS | Compliant |
