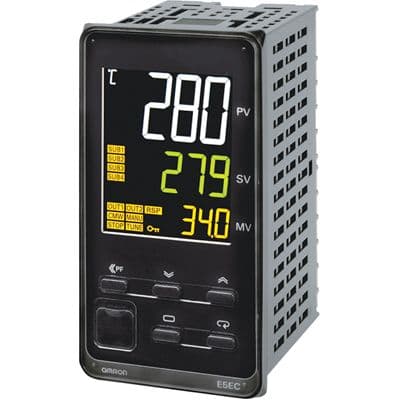

The Omron E5EC-QX4D5M-000 is a PID and on/off process and temperature controller with a 24V operating supply voltage and 14.4V output voltage. It features three inputs and four outputs, and is rated for operation in temperatures between -10°C and 55°C. The controller is designed for use in industrial automation and control applications, and is compliant with RoHS regulations. It has a water-resistant and dust-tight design, with a screw termination and a weight of 0.463lb.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E5EC-QX4D5M-000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Control Method | On/Off, Proportional (PID) |
| Display Type | LCD |
| Height | 96mm |
| Input Type | UNIVERSAL |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Min Supply Voltage (AC) | 24V |
| Max Supply Voltage (DC) | 24V |
| Mount | Brackets, Panel |
| Number of Inputs | 3 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 24V |
| Output Type | Voltage |
| Output Voltage | 14.4V |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | E5EC |
| Size | 96mm |
| Termination | Screw |
| Weight | 0.463lb |
| Width | 48mm |
| RoHS | Not Compliant |
Download the complete datasheet for Omron E5EC-QX4D5M-000 to view detailed technical specifications.
