Omron
G2RL-1A-E12VDC
Electromechanical Relay 12VDC 360Ohm 16A SPST-NO (29x12.7x15.7)mm THT Power Relay
PackageDIP
Quick Jump:
Technical Specifications
Omron G2RL-1A-E12VDC technical specifications.
General
Package/Case
DIP
Coil Current
33.3mA
Coil Resistance
360R
Coil Voltage (DC)
12V
Contact Current Rating
16A
Contact Material
Silver, Cadmium
Depth
12.7mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Operate Time
15ms
Radiation Hardening
No
Ratings
IP54
RoHS Compliant
Yes
Switching Current
16A
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
440V
DC Rated Voltage
300V
Compliance
RoHS
Compliant
Datasheet
Omron G2RL-1A-E12VDC Datasheet
Download the complete datasheet for Omron G2RL-1A-E12VDC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

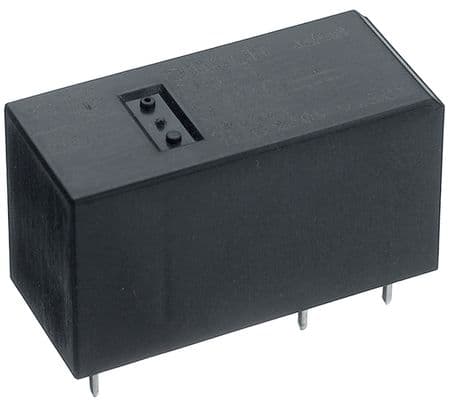

Product Images
