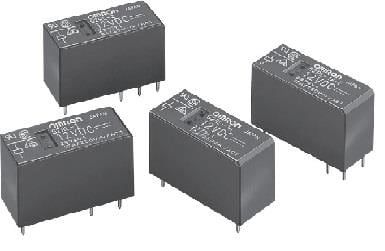

The Omron G2RL-24DC12BYOMB relay features a 24V DC coil voltage with a resistance of 360 ohms and a current rating of 8A. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The relay is approved by UL, CSA, and VDE, and is packaged in bulk for through-hole mounting on a PCB. It has a silver and cadmium contact material and a maximum voltage rating of 300V DC and 440V AC.
Checking distributor stock and pricing after the page loads.
| Approvals | UL, CSA, VDE |
| Coil Current | 33.3mA |
| Coil Resistance | 360R |
| Coil Voltage (DC) | 12V |
| Contact Material | Silver, Cadmium |
| Current Rating | 8A |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 300V |
| Mount | PCB, Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| Termination | Through Hole |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 380V |
| RoHS | Compliant |
