SPNO miniature PCB relay, 5A 5Vdc coil
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G6B-1114P-US-SVDC5 technical specifications.
General
| Coil Current | 40mA |
| Coil Power | 200mW |
| Coil Resistance | 125R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Cadmium |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G6B |
| Termination | PC Pin |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6B-1114P-US-SVDC5 Datasheet
Download the complete datasheet for Omron G6B-1114P-US-SVDC5 to view detailed technical specifications.
No datasheet is available for this part.

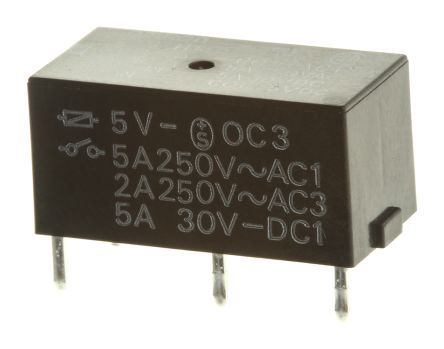

Product Images
