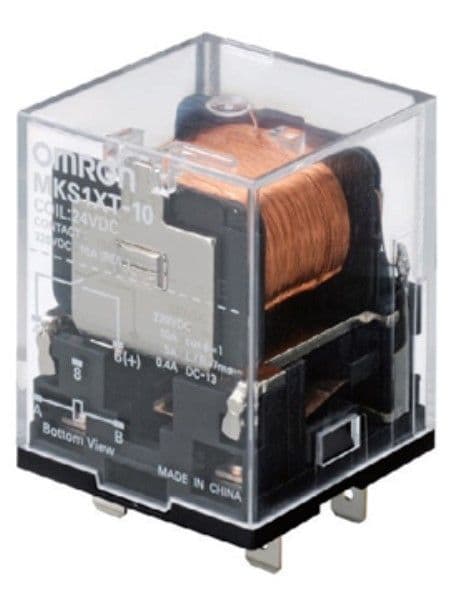

The Omron MKS1XTN-10AC24 is a general purpose relay with a contact current rating of 10A and a coil voltage of 24V AC. It has a non-latching coil type and a SPST throw configuration. The relay is socketable and has a power consumption of 1.5W. It is RoHS compliant and has an operating temperature range of -25°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron MKS1XTN-10AC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 96.3mA |
| Coil Resistance | 48.4R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Silver |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | Socketable |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Consumption | 1.5W |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | MKS-X |
| Termination | Plug |
| Throw Configuration | SPST |
| RoHS | Not Compliant |
