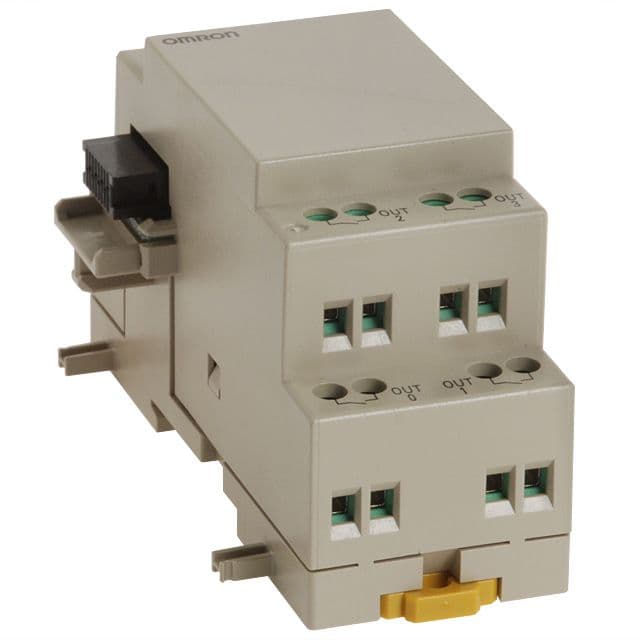

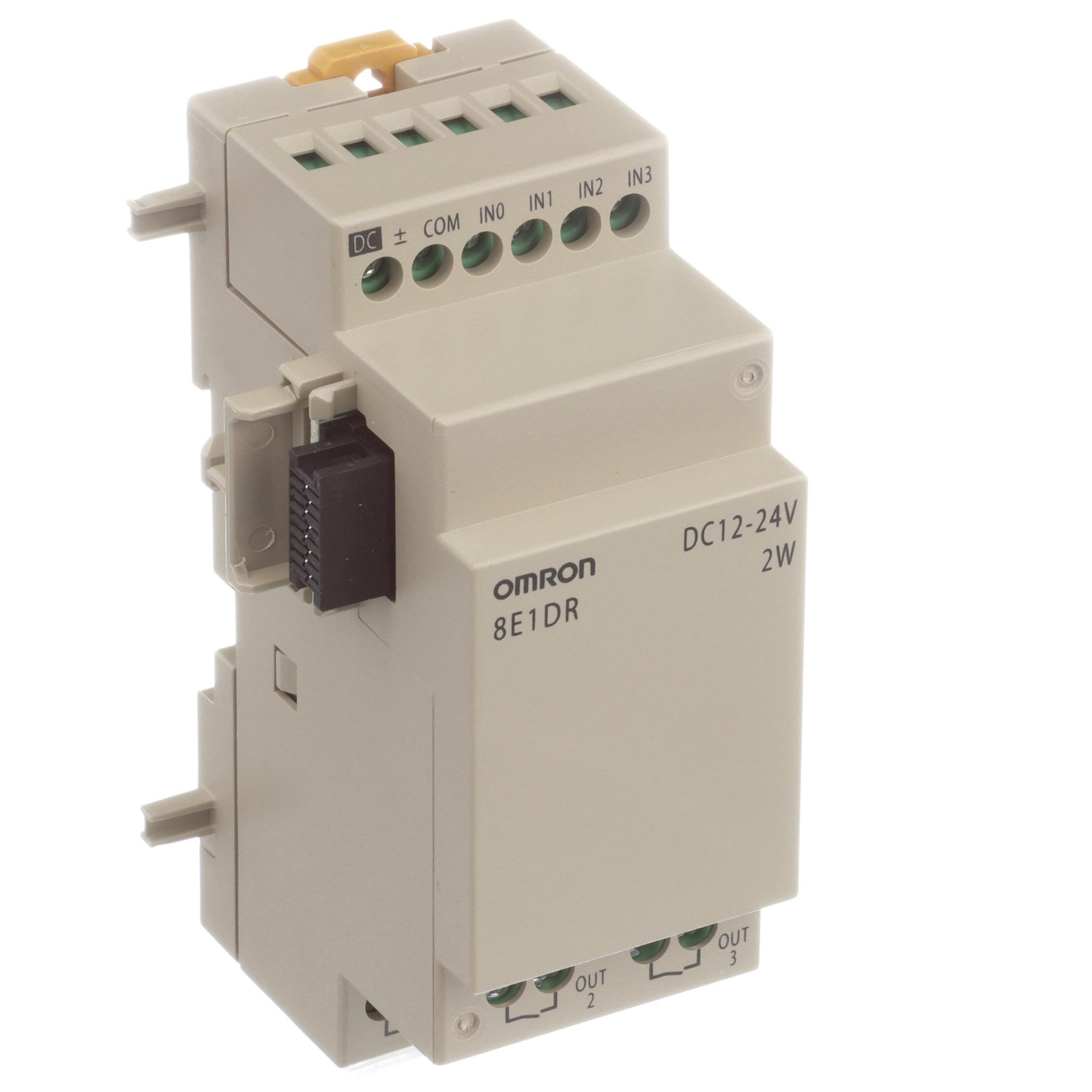

The Omron ZEN-8E1DR is a 4-input 4-output relay module designed for industrial automation and control applications. It features a compact module package with DIN rail and rack mount options, and is rated for operation in temperatures between 0°C and 55°C. The module is certified to IP20 and meets various international approvals including cULus, IEC, and EN. It is available in a bulk packaging configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron ZEN-8E1DR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | cULus, IEC, EN |
| Package/Case | Module |
| Depth | 2.126inch |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 3.543inch |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Mount | DIN Rail, Rack |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Output Type | RELAY |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP20 |
| Series | ZEN V2 |
| Size | 54mm |
| Termination | Screw |
| Weight | 0.265lb |
| Width | 1.378inch |
| RoHS | Compliant |
Download the complete datasheet for Omron ZEN-8E1DR to view detailed technical specifications.
