Onsemi
1V5KE150CA
FAIRCHILD SEMICONDUCTOR 1V5KE150CA TVS Diode, 1.5KE Series, Bidirectional, 128 V, 207 V, DO-201AE, 2 Pins
PackageDO-201AE
MountingThrough Hole
PolarityBidirectional
Power5W
Quick Jump:
Technical Specifications
Onsemi 1V5KE150CA technical specifications.
General
Package/Case
DO-201AE
Clamping Voltage
207V
Contact Plating
Tin, Matte
Diameter
5.33mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
No
Lead Free
Lead Free
Leakage Current
5uA
Max Breakdown Voltage
158V
Min Breakdown Voltage
143V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
5uA
Max Surge Current
7.2A
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
128V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
7.2A
Peak Pulse Power
1.5kW
Polarity
Bidirectional
Power Dissipation
5W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
143V
Reverse Standoff Voltage
128V
RoHS Compliant
Yes
Termination
Axial
DC Rated Voltage
150V
Weight
0.36g
Compliance
RoHS
Compliant
Datasheet
Onsemi 1V5KE150CA Datasheet
Download the complete datasheet for Onsemi 1V5KE150CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

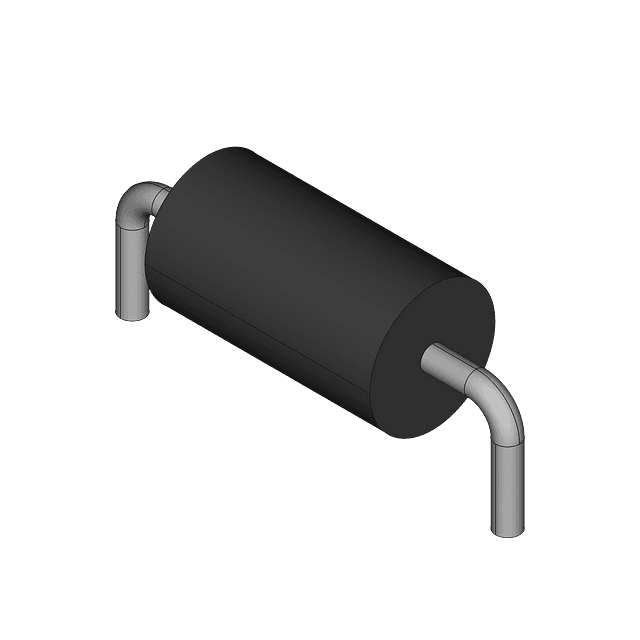

Product Images
