Onsemi
1V5KE160A
FAIRCHILD SEMICONDUCTOR 1V5KE160A TVS Diode, Unidirectional, 136 V, 219 V, DO-201AE, 2 Pins
PackageDO-201AE
MountingThrough Hole
PolarityUnidirectional
Power5W
Quick Jump:
Technical Specifications
Onsemi 1V5KE160A technical specifications.
General
Package/Case
DO-201AE
Clamping Voltage
219V
Contact Plating
Tin, Matte
Diameter
5.33mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
No
Lead Free
Lead Free
Leakage Current
5uA
Max Breakdown Voltage
168V
Min Breakdown Voltage
152V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
5uA
Max Surge Current
6.8A
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
136V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
6.8A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
5W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
152V
Reverse Standoff Voltage
136V
RoHS Compliant
Yes
Termination
Axial
DC Rated Voltage
160V
Weight
0.36g
Compliance
RoHS
Compliant
Datasheet
Onsemi 1V5KE160A Datasheet
Download the complete datasheet for Onsemi 1V5KE160A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

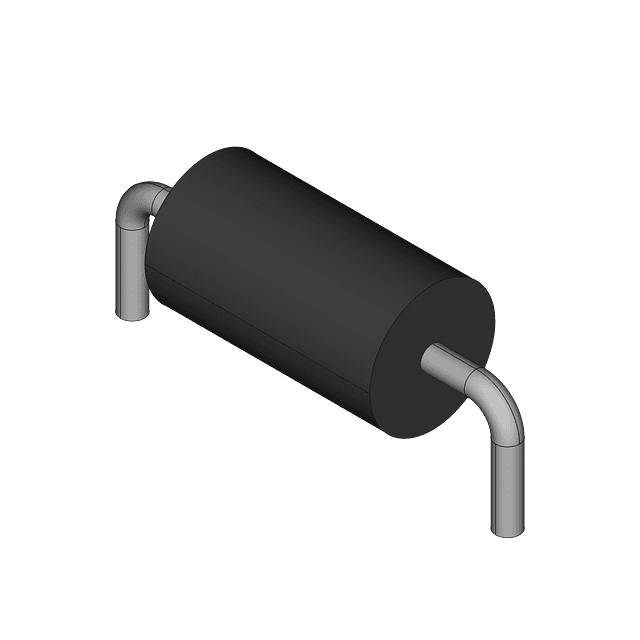

Product Images
