Onsemi
1V5KE68CA
FAIRCHILD SEMICONDUCTOR 1V5KE68CA TVS Diode, TVS, Bidirectional, 58.1 V, 92 V, DO-201AE, 2 Pins
PackageDO-201AE
MountingThrough Hole
PolarityBidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Onsemi 1V5KE68CA technical specifications.
General
Package/Case
DO-201AE
Clamping Voltage
92V
Clamping Voltage-Max
92V
Contact Plating
Tin, Matte
Diameter
5.33mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
No
Lead Free
Lead Free
Leakage Current
5uA
Max Breakdown Voltage
71.4V
Min Breakdown Voltage
64.6V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
5uA
Max Surge Current
16.3A
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
58.1V
Package Quantity
1250
Packaging
Tape and Reel
Peak Pulse Current
16.3A
Peak Pulse Power
1.5kW
Polarity
Bidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
64.6V
Reverse Standoff Voltage
58.1V
RoHS Compliant
Yes
Termination
Axial
DC Rated Voltage
68V
Weight
0.36g
Compliance
RoHS
Compliant
Datasheet
Onsemi 1V5KE68CA Datasheet
Download the complete datasheet for Onsemi 1V5KE68CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

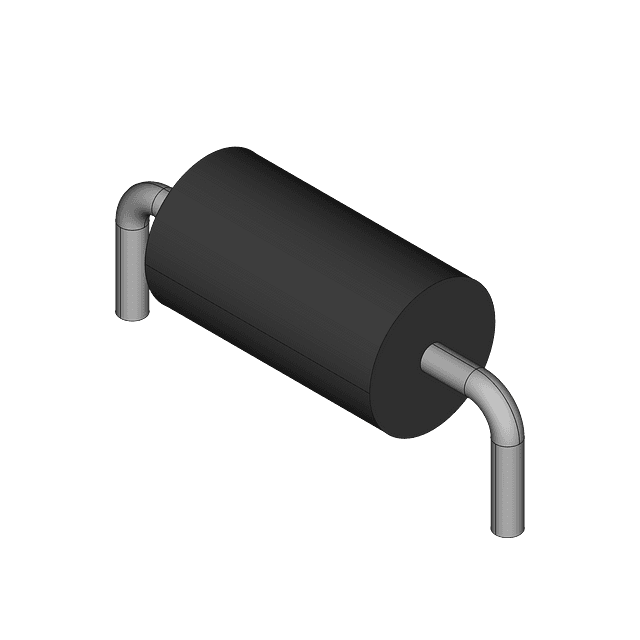

Product Images
