PackageDO-201AE
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1V5KE75A technical specifications.
General
Package/Case
DO-201AE
Clamping Voltage
104V
Contact Plating
Tin, Matte
Diameter
5.33mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
No
Lead Free
Lead Free
Leakage Current
5uA
Min Breakdown Voltage
71.3V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
5uA
Max Surge Current
14.6A
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
64.1V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
14.6A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
71.3V
Reverse Standoff Voltage
64.1V
RoHS Compliant
Yes
Termination
Axial
DC Rated Voltage
75V
Weight
0.36g
Compliance
RoHS
Compliant
Datasheet
Onsemi 1V5KE75A Datasheet
Download the complete datasheet for Onsemi 1V5KE75A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

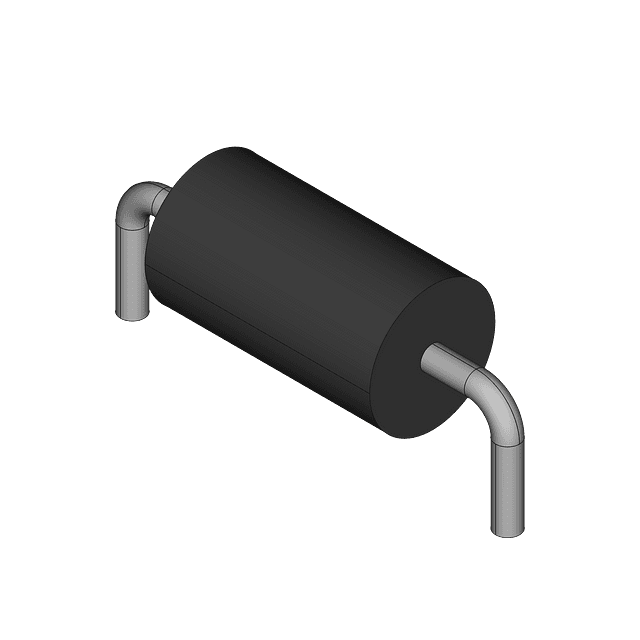

Product Images
