General purpose phototransistor output optocoupler featuring a 6-pin DIP package for through-hole mounting. Offers a 7.5kV isolation voltage and operates with DC input. Key specifications include a 500mV collector-emitter saturation voltage, 500mV collector-emitter voltage (VCEO), and a 30V maximum output voltage. Designed for a 10mA input current, it handles up to 60mA forward current with a 2µs fall time. This RoHS compliant component is supplied in bulk packaging with 1000 units per package.
PackageDIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Onsemi 4N25VM technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 500mV |
| Collector-emitter Voltage-Max | 500mV |
| Fall Time | 2us |
| Forward Current | 60mA |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 7.5kV |
| Isolation Voltage-Max | 7.5kV |
| Lead Free | Lead Free |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 150mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Voltage | 30V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Weight | 0.855g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 4N25VM Datasheet
Download the complete datasheet for Onsemi 4N25VM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

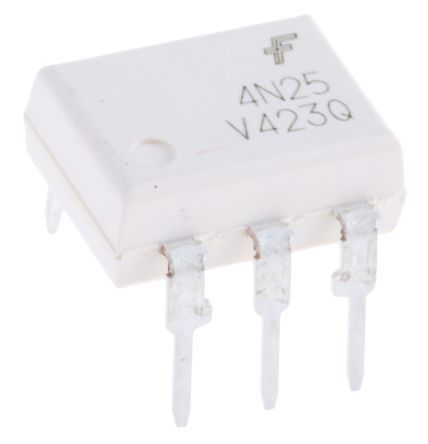

Product Images
