General purpose optocoupler featuring a phototransistor output in a 6-pin DIP package. Offers 5.3kV isolation voltage and a 500mV collector-emitter saturation voltage. Operates with a DC input type and a maximum forward current of 60mA. Suitable for through-hole mounting with a maximum power dissipation of 250mW.
PackageDIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Onsemi 4N26VM technical specifications.
General
Package/Case
DIP
Collector Emitter Saturation Voltage
500mV
Collector Emitter Voltage (VCEO)
500mV
Collector-emitter Voltage-Max
500mV
Forward Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Lead Free
Lead Free
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
30V
Max Power Dissipation
150mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Package Quantity
1000
Packaging
Bulk
Power Dissipation
250mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
No
Weight
0.855g
Compliance
RoHS
Not CompliantNo
Datasheet
Onsemi 4N26VM Datasheet
Download the complete datasheet for Onsemi 4N26VM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

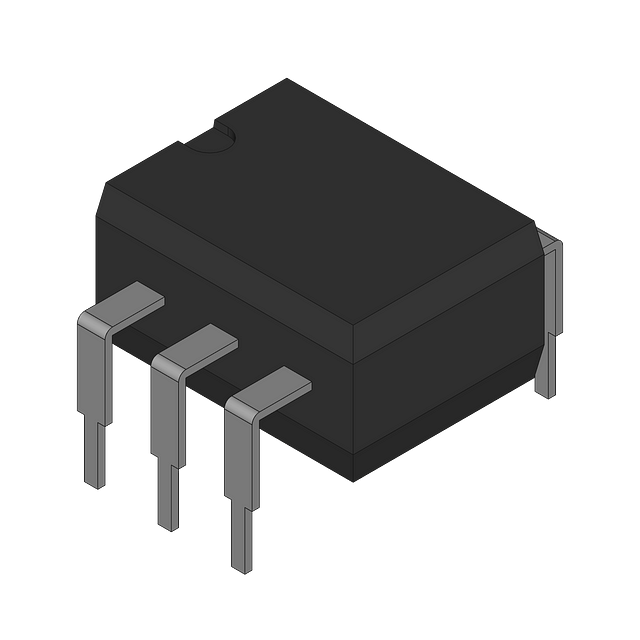

Product Images
