Surface mount phototransistor output optocoupler featuring a 6-pin DIP package. Offers a 1:1 channel configuration with a maximum output voltage of 30V and a collector-emitter voltage (VCEO) of 500mV. Operates with a forward current up to 60mA and a maximum input current of 60mA, with a fall time of 2µs. Designed for surface mounting, this RoHS compliant component has a power dissipation of 250mW and operates within a temperature range of -40°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Onsemi 4N28SM technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 500mV |
| Collector-emitter Voltage-Max | 500mV |
| Fall Time | 2us |
| Forward Current | 60mA |
| Input Type | DC |
| Lead Free | Lead Free |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Voltage | 30V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 250mW |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Weight | 0.81g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 4N28SM Datasheet
Download the complete datasheet for Onsemi 4N28SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

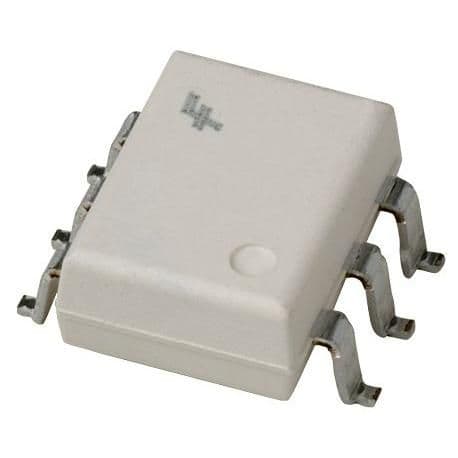

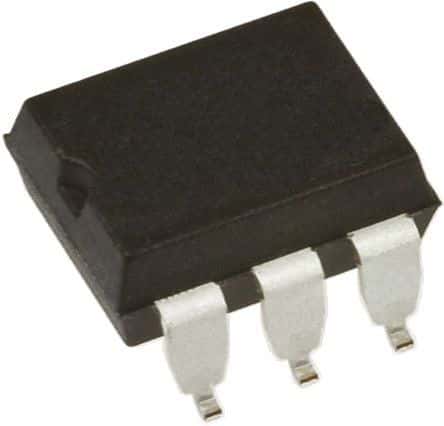

Product Images
