General purpose photodarlington optocoupler featuring a 6-pin DIP package for through-hole mounting. Offers a high current transfer ratio of 500% with a maximum collector current of 150mA. Provides 2.5kV isolation voltage, with a maximum of 5.3kV, and operates with a 10mA input current. Maximum power dissipation is 250mW, with a collector-emitter voltage of 1V. This RoHS compliant component is supplied in bulk packaging.
PackageDIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Onsemi 4N32VM technical specifications.
General
Package/Case
DIP
Collector Emitter Saturation Voltage
1V
Collector Emitter Voltage (VCEO)
1V
Collector-emitter Voltage-Max
1V
Current Transfer Ratio
500%
Fall Time
100us
Forward Current
80mA
Input Current
10mA
Input Type
DC
Isolation Voltage
2.5kV
Isolation Voltage-Max
5.3kV
Lead Free
Lead Free
Max Collector Current
150mA
Max Input Current
80mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
30V
Max Power Dissipation
250mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
150mA
Output Voltage
30V
Package Quantity
1000
Packaging
Bulk
Power Dissipation
250mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
3V
Reverse Voltage (DC)
3V
RoHS Compliant
Yes
Weight
0.855g
Compliance
RoHS
Compliant
Datasheet
Onsemi 4N32VM Datasheet
Download the complete datasheet for Onsemi 4N32VM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

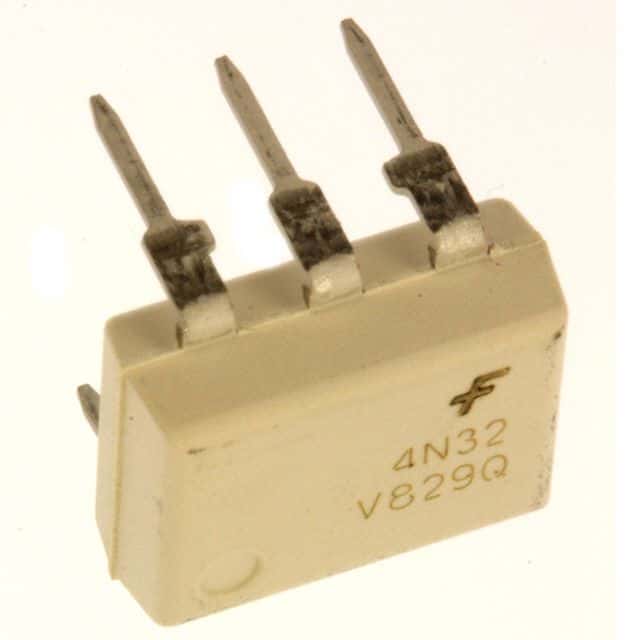

Product Images
