1-channel DC input optocoupler with transistor output, featuring a 7.5kV isolation voltage and a 300mV collector-emitter saturation voltage. This surface-mount device offers a 60mA forward and input current, with a maximum output voltage of 100V and a maximum power dissipation of 250mW. Operating across a -40°C to 100°C temperature range, it is supplied in a 6-pin PDIP SMD package on tape and reel.
PackageSMD/SMT
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Onsemi 4N35SR2M technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 300mV |
| Collector-emitter Voltage-Max | 300mV |
| Contact Plating | Tin, Matte |
| Fall Time | 2us |
| Forward Current | 60mA |
| Input Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 7.5kV |
| Isolation Voltage-Max | 7.5kV |
| Lead Free | Lead Free |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Voltage | 100V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Weight | 0.81g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 4N35SR2M Datasheet
Download the complete datasheet for Onsemi 4N35SR2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

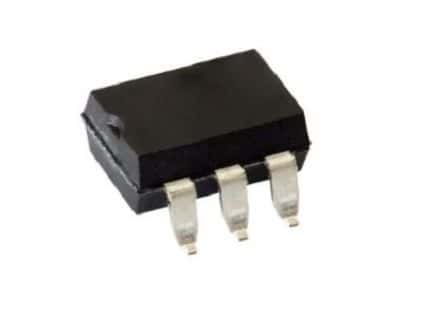

Product Images
